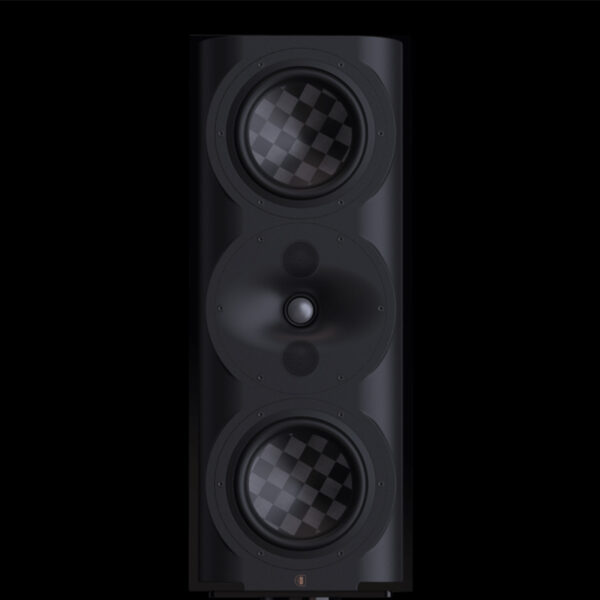

The Perlisten S5m Shares technologies and drivers from the flagship S7t. Featuring their proprietary DPC-Array controlling Mid/High frequencies, centered by a 28mm Beryllium dome and dual 28mm TPCD ultra-lightweight domes.
All transducers are developed ground up by our engineers – bringing decades of research, culminating in this world class design. They have teamed up with companies in the USA and Sweden to bring modern material science to hi-fi.
Utilizing advanced Comsol acoustical modeling, their DPC-array is the result of 18 months of painstaking simulations and prototyping. The result is one of the most technologically advanced loudspeakers available. This new tweeter/waveguide DPC-Array delivers amazing accuracy, smoothness, and directivity control to handle the critical vocal range and delicate treble.
All S-Series speakers share the same DPC-Array and benefit from our unique timbre matching technique across the entire series. Custom bass drivers made from thin-ply carbon diaphragms (TPCD) can be configured as bass reflex or acoustic suspension and adjusted for listener preference. Unparalleled dynamic range, low distortion and musical finesse.
The PerListen S-Series speakers also have the distinguished honor to be the world’s first and only loudspeakers to be certified for THX Dominus – their highest rating. A mark of achievement.
Perlisten S5m Specifications:
|Enclosure alignment||3-way bass reflex / acoustic suspension|
|Driver compliment||DPC Array:
28mm(2) Textreme TPCD
180mm(2) Textreme TPCD
|Sensitivity||89.6dB / 2.83v / 1.0m|
|Impedance||4Ω nominal / 3.0Ω min|
|Frequency Response (+/-1.5dB)||80 – 20kHz Listening window|
|Frequency Response (-10dB)||Bass reflex: 35 – 37kHz
Acoustic suspension: 41 – 37kHz
|Typical in room bass extension||Bass reflex: 29Hz
Acoustic suspension: 32Hz
|Dimensions (HxWxD) without stand||600 x 240 x 400mm
23.6 x 9.5 x 15.7″
|Weight||19.0 kg (41.8 lbs.)|
|Recommended Amplifier Power||50 – 300W RMS|
|SPL capability (100-20kHz)||117dB peak <2% – 2nd, 3rd Harmonics|
|Certification||THX Dominus, THX Ultra|
|Available finishes||Piano black, Gloss white|
