Børresen M3 Gold Signature

Description

Designed to Perform

The Børresen M3 Gold Signature embodies the close relationship between form and function that defines the M-series. Its elegant, sculptural design reflects the creative partnership between Michael Børresen and Flemming Erik Rasmussen, while its uncompromising engineering remains focused firmly on musical performance.

The result is a loudspeaker that combines visual sophistication with the technological ambition of Audio Group Denmark, bringing together distinctive design, advanced engineering and exceptional musical performance.

With the M3 Gold Signature, the overriding goal was to challenge existing technological limits and explore new, unconventional approaches to loudspeaker design. This involved developing key components from the ground up, finding more effective ways to control resonance and vibration and selecting materials capable of taking sound quality to an entirely new level.

The Gold Signature Basket

The basket is far more than a mechanical support for the driver. As the membrane moves, minute vibrations can travel through the basket, creating unwanted resonances that limit transparency and tonal integrity.

For the Børresen M Gold Signature Series, the basket is treated as a critical structural component, combining exceptional rigidity with effective vibration damping. It is milled from a solid block of austenitic stainless steel and finished with the latest Ansuz Signature surface treatment. This thin, multi-layer coating incorporates titanium, zirconium, hafnium and their respective nitrides, further enhancing stiffness, damping and mechanical stability. The finished structure then undergoes extensive cryogenic processing to optimize its mechanical properties.

By keeping the mechanical structure as quiet as possible, the driver is better able to follow the music without adding its own signature.

The Gold Signature Membrane

The Børresen M Gold Signature Series driver membranes build on the advanced laminate principles developed for the flagship M8 Gold Signature. Their three-layer construction combines an aramid honeycomb core with spread-tow carbon-fiber skins, creating an exceptionally stiff yet lightweight structure. The carbon-fiber layers help suppress unwanted vibrations and resonances, while the aramid core provides an outstanding stiffness-to-weight ratio.

An additional outer layer of titanium is applied to the membrane, followed by a HI-PIMS process that deposits ultra-thin layers of zirconium, titanium, hafnium and their respective nitrides onto the primary surface. This advanced Ansuz Signature coating significantly increases stiffness and shifts unwanted resonances even further beyond the driver’s operating range. The result is a lower mechanical noise floor, faster transient response and greater control over the membrane’s behavior.

For the M3 Gold Signature, this advanced membrane technology is combined with the precision and mechanical control of the Gold Signature driver platform. The result is a driver capable of responding with exceptional speed and accuracy while keeping residual resonances firmly under control. This level of membrane control is essential in achieving the M Gold Signature Series’ characteristic clarity, openness and effortless musical expression.

The Iron-Free Magnet Motor

Børresen’s iron-free magnet motor was developed to eliminate the high inductance, sluggish response and loss of fine musical detail associated with iron in conventional magnetic systems. Instead of a single permanent magnet with iron pole pieces, it uses four neodymium N52 magnet rings arranged in mirrored, repelling pairs around the voice coil.

The magnets are mechanically compressed into a symmetrical structure that distributes magnetic flux evenly across the narrow voice-coil gap. This creates a homogeneous magnetic field that remains stable at every position of the voice coil, ensuring linear motion without the hysteresis and energy storage associated with iron-based systems.

Highly conductive, non-magnetic pole rings are inserted between the magnets to stabilize their immense repelling forces and preserve the precise geometry of the gap. Earlier M-series drivers used cryogenically processed silver pole rings. As the voice coil modulates the magnetic field, eddy currents induced in the silver rings counteract these changes through the Lenz effect, dramatically reducing flux variation and electromagnetic damping.

This iron-free system reduces inductance from approximately 0.5 mH in free air to as little as 0.055 mH, eliminating nearly 90% of magnetic flux variation during playback. With far less resistance to rapid current changes, the voice coil responds instantly and precisely, delivering exceptional resolution, midrange clarity and dynamic realism.

For the Gold Signature generation, Børresen developed a new hybrid pole ring inspired by Ansuz Gold Signature wiring. It combines copper layered with silver and gold, followed by cryogenic processing. This further lowers inductance and enhances linearity, allowing the voice coil to respond with exceptional speed and precision.

The result is outstanding resolution, transient accuracy, tonal clarity and dynamic expression without the mechanical and electromagnetic constraints of a conventional iron-based motor.

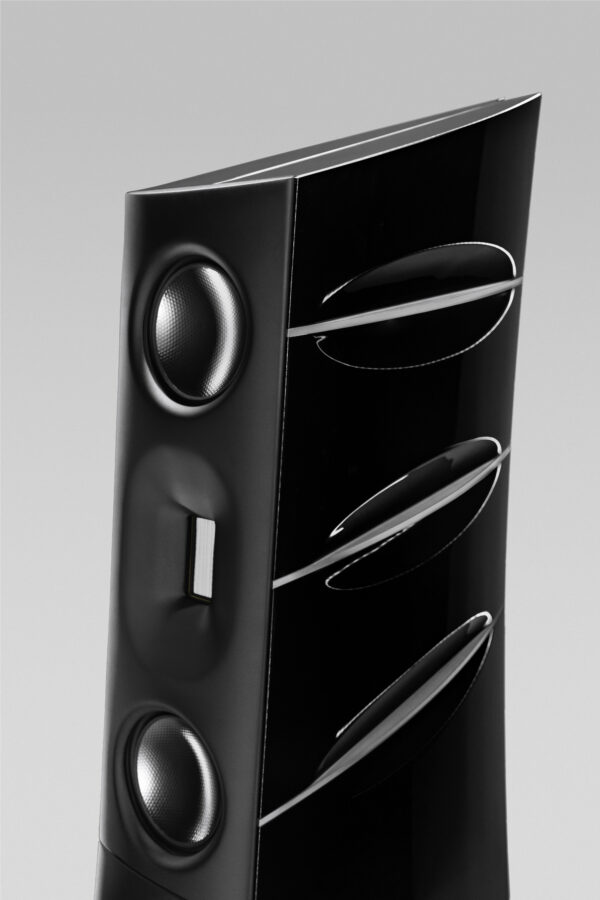

The RP94 Gold Signature Ribbon Tweeter

The Børresen M3 Gold Signature is equipped with the RP94 Gold Signature ribbon tweeter, a highly efficient design operating from 2.5 kHz upward with a sensitivity of 94 dB. Its aluminum-coated nylon and aramid ribbon membrane weighs just 0.01 grams, giving it an extraordinarily low moving mass and enabling exceptionally fast transient response.

Its fully enclosed motor system maintains linear behavior even during demanding dynamic peaks, with no audible distortion or breakup across its operating range. The ribbon membrane can withstand temperatures of up to 600°C without degradation, contributing to long-term stability and reliability.

For the Gold Signature generation, the RP94 is further refined with a stainless-steel front plate treated using the Ansuz Signature surface process. This improves its mechanical stability and resonance behavior, allowing it to resolve even finer musical information while maintaining exceptional speed, openness and precision.

Cryogenic Processing

All metal components used in the Børresen M Gold Signature Series undergo extensive cryogenic treatment to improve their electrical and mechanical properties. During this process, the metal’s crystal structure contracts and reorganizes, producing a more uniform material structure that approaches the characteristics of a monocrystal. According to Børresen, these changes can increase conductivity by approximately 6–8% while reducing residual mechanical stresses.

The complete treatment takes three days. Components are gradually cooled from room temperature to approximately −196°C during the first 24 hours, held at that temperature for another 24 hours and then gradually returned to room temperature over the final 24 hours.

This controlled process avoids thermal stress while strengthening and compressing the metal’s grain structure. The result is a more stable material foundation with lower losses, allowing the finest musical information to emerge with greater clarity.

Specifications

DIMENSIONS:

Dimensions (H × W × D): 154 cm × 42.8 cm × 72.6 cm / 60.6 in. × 16.8 in. × 28.5 in.
Weight: 68 kg / 149.9 lb

TECHNICAL:

Frequency Response: 25 Hz–50 kHz
Sensitivity: 89 dB / 1 W
Impedance: 8 ohms
Recommended Amplifier: >50 W
Tweeter: 1 × Børresen RP94 Gold Signature
Bass/Midrange Drivers: 2 × Børresen IronFree5 Gold Signature
Bass Drivers: 2 × Børresen IronFree5 Gold Signature
Finish: Black and white piano lacquer
