Linn 343 – Exakt Integrated

Description

Reference Performance in a Fully Integrated Design

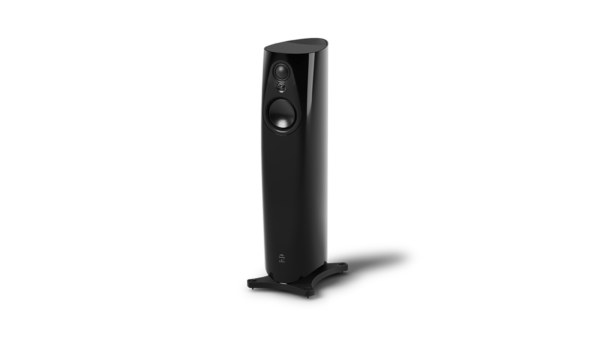

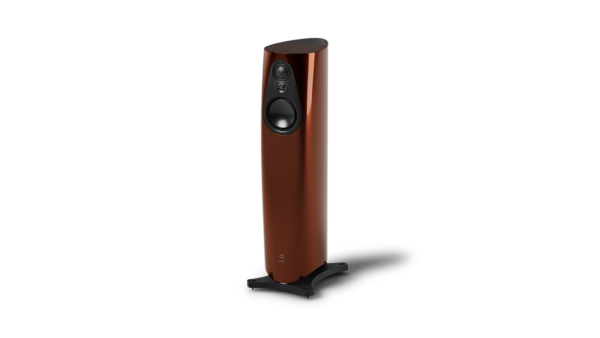

The Linn 343 Exakt Integrated is a four-way, fully active floor-standing reference loudspeaker designed around Linn’s revolutionary Pistonik drive unit technology. Combining Exakt digital processing, Organik DACs, Adaptive Bias Control amplification, and a precision-engineered composite cabinet, the 343 delivers remarkable musical clarity, precise imaging, and exceptional bass performance within an elegant, compact design.

Unlike conventional passive loudspeakers, the 343 Exakt Integrated houses its digital crossover, amplification, and supporting electronics within the loudspeaker itself, creating a complete, precisely controlled acoustic system without the need for external power amplifiers.

Pistonik Drive Unit Technology

First introduced in Linn’s flagship 360 loudspeakers, Pistonik technology is central to the 343’s low-frequency performance. The 343 is the first Linn loudspeaker designed around Pistonik from the outset, integrating its drive units, cabinet architecture, and supporting electronics into a unified acoustic system.

The 343 features two Pistonik-equipped bass drivers:

• 220 mm Down-Firing Lower Bass Driver: Features an aluminium diaphragm powered by Linn’s Power DAC architecture and Pistonik motor system. Its down-firing configuration uses the floor as an acoustic boundary, efficiently distributing low-frequency energy throughout the listening space while delivering remarkable bass depth, precision, and control.
• 190 mm Upper Bass Driver: Incorporates an aluminium diaphragm and Pistonik motor system, providing low distortion, controlled output, and exceptional definition through the upper-bass frequencies.

Together, these drivers reproduce low frequencies with impressive scale, texture, and composure, maintaining the natural character and dynamic impact of the recording.

Advanced Composite Cabinet Design

The Linn 343 features an entirely new cabinet constructed from a glass-fibre-reinforced moulding compound, providing excellent stiffness and density while allowing thinner cabinet walls and greater internal acoustic volume.

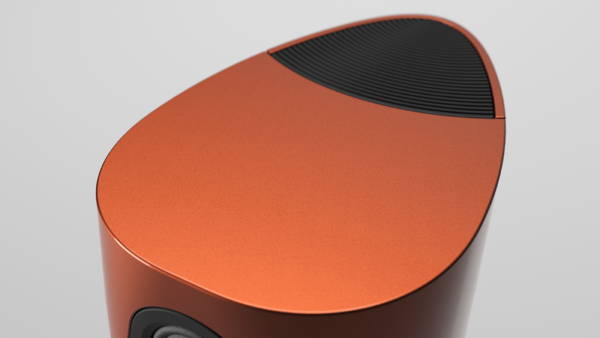

Its continuous, curved design minimises diffraction caused by sharp cabinet edges, supporting wide sound dispersion, stable imaging, and an expansive listening area. The sculpted enclosure also accommodates the down-firing bass system and integrated electronics while maintaining a slender, elegant profile.

The result is a loudspeaker that combines sophisticated acoustic engineering with a refined architectural appearance, delivering reference-level performance without dominating the living space.

Fully Integrated Exakt Digital Architecture

The 343 Exakt Integrated incorporates Linn’s Exakt digital crossover technology, allowing the loudspeaker’s drive units to be managed through precise digital signal processing rather than a conventional passive crossover network.

Unlike the Passive with Active Bass (PWAB) version, the Exakt Integrated model includes its own amplification and digital-to-analogue conversion for the upper driver array, creating a fully integrated active loudspeaker system.

This architecture brings together several of Linn’s proprietary technologies:

• Exakt Digital Crossover: Provides precise digital control of the crossover functions, supporting accurate integration between the loudspeaker’s drive units.
• Organik DACs: Linn’s proprietary digital-to-analogue conversion technology, designed to preserve musical detail, clarity, and accuracy.
• Adaptive Bias Control Amplification: Integrated Class AB amplification with Adaptive Bias Control, designed to optimise amplifier operation and minimise distortion.
• Power DAC Architecture: Provides dedicated control of the Pistonik active bass system, contributing to its precise and controlled low-frequency performance.
• Utopik Power Supply: Linn’s advanced power supply technology, providing the electrical foundation for the loudspeaker’s integrated electronics.

Working together, these technologies allow the 343 to control and reproduce the musical signal with exceptional precision, from digital processing to the final movement of its drive units.

Precision High-Frequency and Midrange Performance

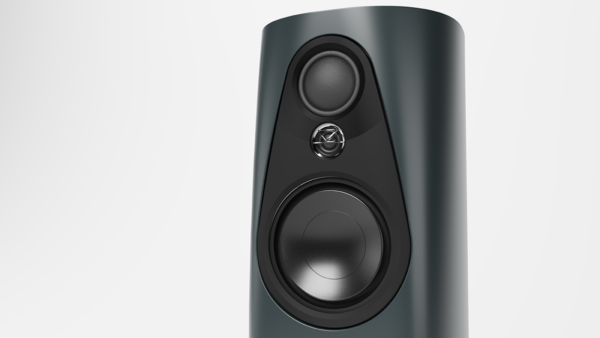

The 343 incorporates a 19 mm thin-ply woven carbon dome tweeter and a 64 mm thin-ply woven carbon dome midrange driver. Their shared diaphragm technology supports consistent tonal character and smooth integration through the crossover region.

A carefully profiled tweeter waveguide and sculpted front baffle further contribute to controlled high-frequency dispersion and precise stereo imaging.

Combined with Exakt digital processing and dedicated amplification, the driver array is designed to deliver natural vocals, detailed instrumental reproduction, and a stable, spacious soundstage.

Isolated Electronics & Silent Cooling

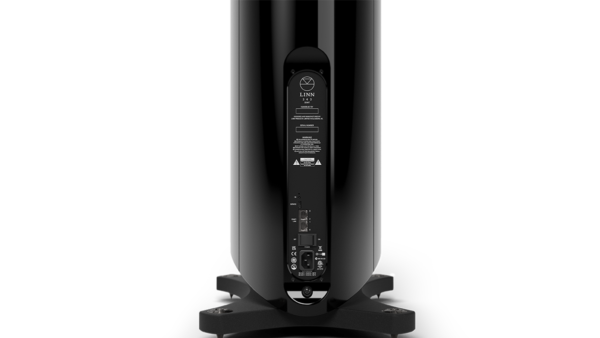

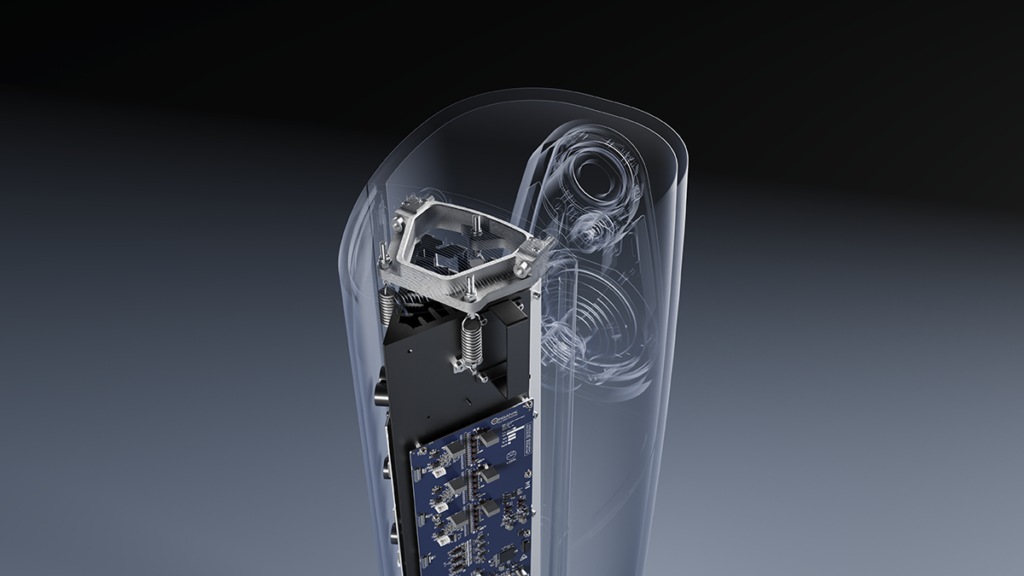

The 343 Exakt Integrated houses its electronics within a dedicated rear module, mechanically isolated from the loudspeaker cabinet through a three-point spring mounting system. This arrangement helps protect sensitive electronic components from vibrations generated by the drive units.

A custom-designed, passively cooled aluminium heat sink provides efficient thermal management without the need for cooling fans, allowing the electronics to operate silently.

The module is concealed within the cabinet’s flowing exterior, preserving the loudspeaker’s elegant appearance while accommodating its advanced integrated technologies.

Linn Space Optimisation+

The 343 Exakt Integrated supports Linn Space Optimisation+, enabling precise room-specific adjustments within the Exakt system.

By accounting for the acoustic characteristics of the listening environment, Space Optimisation+ helps reduce unwanted room interactions, improving bass accuracy and overall musical performance.

The Linn 343 Exakt Integrated combines Linn’s advanced digital technologies, fully integrated amplification, innovative Pistonik bass engineering, and elegant architectural design in one complete loudspeaker system. With its compact proportions and exceptional acoustic precision, the 343 delivers reference-level musical performance while integrating beautifully into the modern home.
